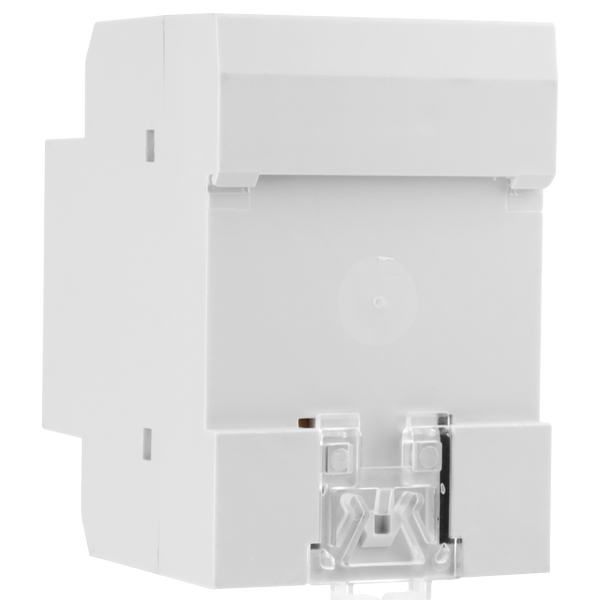

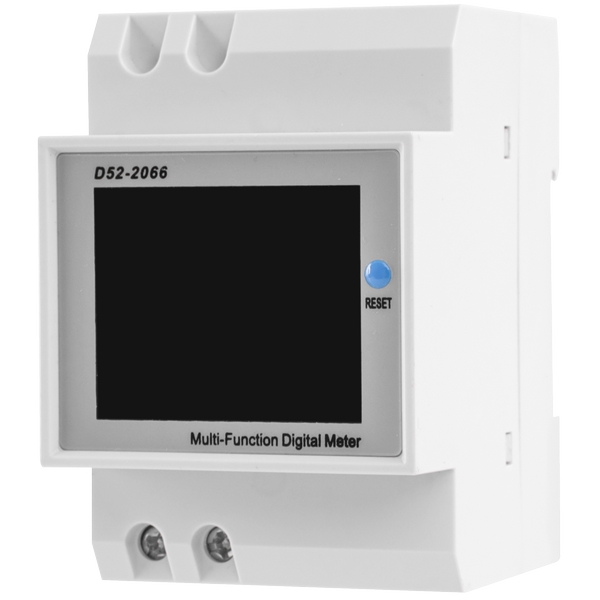

G52-2066型導軌式數顯表應用方法：

1、將測量電壓連接到1和2端子；

Connect the measure voltage tothe 1 and 2 terminal；

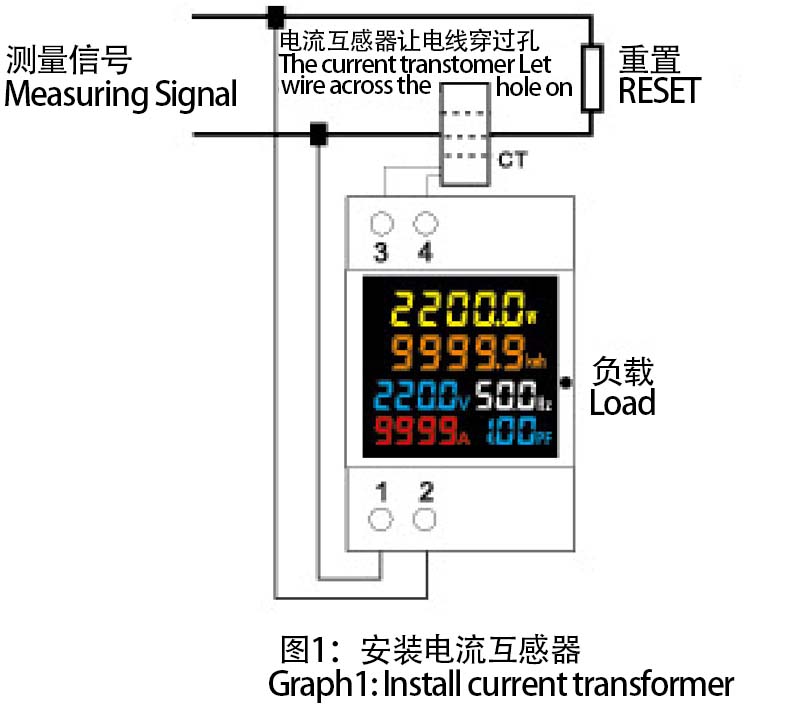

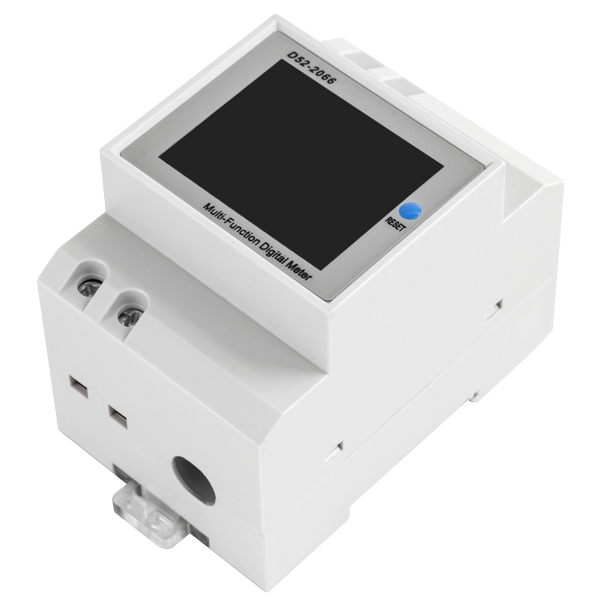

2、儀表與內部電流互感器的連接，如圖1所示。使電線穿過儀表上的孔，并任意選擇方

向。

Connections of meter with intemal current transformer as graph 1.Make the wire

through the hole in the meter and the direction chose arbitrarily.

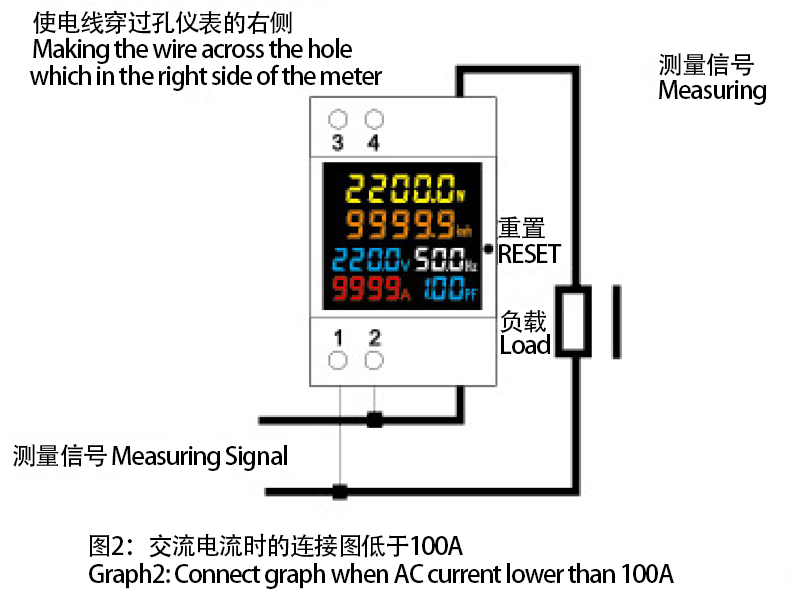

3、儀表與外部電流互感器的連接，如圖2所示。將電線穿過儀表上的孔，并將二次變壓

器的兩根電線連接到3和4端子。

Connections of meter with external curent transformer as graph 2.Make the wire

through the hole in the meter,and connect the two wires ofthe secondary transformer

to the 3 and 4 terminal.

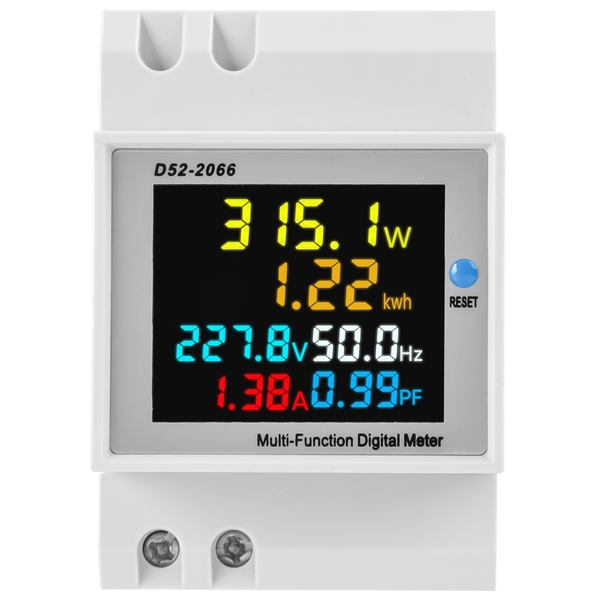

4、通電時，儀表顯示測量參數。

When power on,the meter display the measure parameters.

5.通電時，可以持續按下SAMCK按鈕5秒，然后釋放按鈕時電能將為零并開始累積。在

斷電時，電表可以節省電能的價值，并在下一次電表通電時繼續累積數據。

When power on,you can press the button of SAM.CKlastfor 5 seconds,then the

electric energy wllto be zero and start to cumulate when release the button.And

when power off,the metercan savethe value ofelectric energy and go on cumulatingdata

when the meter power-on next.

G52-2066型導軌式數顯表技術參數：
